Pro-600 Management System

Larger picture

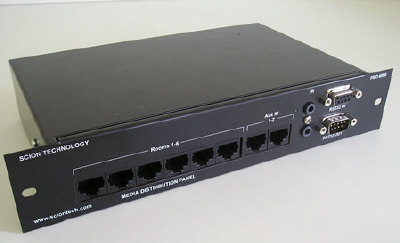

PRO-6000

Provision systems incorporate all the features currently offered by traditional coaxial broadband installations but with greater flexibility to move television sets and other viewing and listening equipment around a building. And provide for multi-point remote control of satellite decoders, VCRs, DVDs and other devices usually cabled into a dedicated location. By centrally locating all of these devices in a closet or study, home-owners can now patch into any data outlet and take complete control from any room in the building using standard infra-red handsets. There are also two return path sockets to allow for control and viewing of devices located away from the central hub

Larger picture

PRO-6010 5 Channel UHF/VHF Demodulator

The 6010 takes five signals from the 6020 and demodulates the UHF/VHF feed to convert the channels into Composite Video and mono audio. When combined with the 6000 or 1000 system it allows everyone to select and view the standard terrestrial channels BBC1 to CH5.

Larger picture

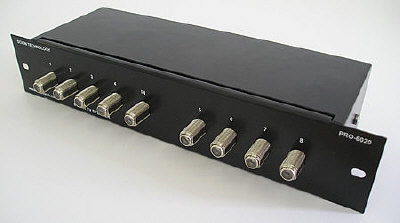

PRO-6020 UHF Splitter

The 6020 is used to take a single UHF and FM feed from a normal TV/FM aerial and split it to 8 equal outputs. This can be used in conjunction with the PRO-6010 or on it’s own for coax distribution.

Larger picture

PRO-6001 Scart Receiver

The 6001 receiver is compatable with both the 6000 and 1000 transmitter products. The receiver simply plugs direct into the scart input of any standard TV set. On the reverse side of the receiver is a RJ45 connector for connection to the RJ45 wall outlet. This also applies to Plasma and LCD screens that have scart inputs. A scart connector is a European standard connector used on all domestic TV’s and related equipment. The receiver eye also shown in the picture takes the infrared command from your handset and sends that command to the Scion TV system.

Larger picture

PRO-6002 Scart Transmitter

The scart transmitter is used in two different applications. When used in conjunction with the 6000 system the 6002 is used to send back signals from appliances like DVD players and VCR’s which would normally be located in the main living room. The 6002 can also be used with either the 6001 or 6004 to create a one to one link. This enables you to remote a device like a Sky satellite box over CAT5e type cable up to distances of 300m. The units will transmit the video and audio signals along with the IR signal, so you can control the device from the remote location using the handset supplied with the device. (PSU required see PRO-0001)

Larger picture

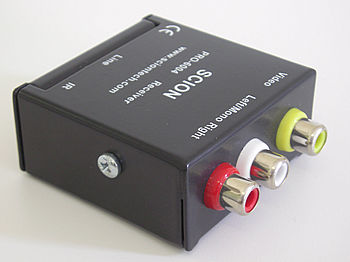

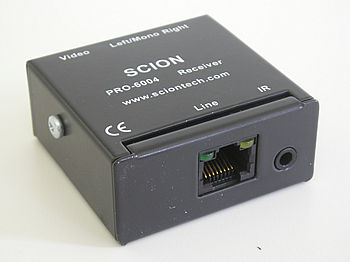

PRO-6004 Phono Receiver

The 6004 receiver has the same specifications as the 6001. The only difference is that the output connectors are RCA Phono. Some Plasma’s and LCD projectors do not have scart inputs, so the 6004 has been introduced to over come this problem.

PRO-6030 19” Housing

The 6030 allows you to house any one of the 6000 products in a 19” cabinet. Particularly useful if a standard 19” cabinet has been utilised to accommodate the other peripheral equipment.

Larger picture

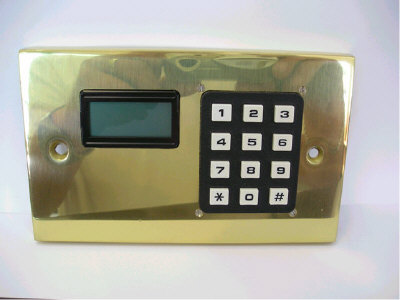

PRO-6060 Keypad

The Pro - 6060 control panel is designed to operate with the PRO-1000, 2000 and 6000 switching matrix systems.
Main applications include environments were multi room control is not required and situations were infrared handsets are commonly lost or inconvenient to use.

Larger picture

PRO-6070 8 Port IR Blaster

The 6070 is used in conjunction with the PRO-6000 hub, the blaster allows you to connect two similar or more devices to the 6000 hub elimination the clash of IR commands. This stops you from changing channels on two devices at the same time. (For example two Sky boxes). With out the blaster unit in place when a channel is selected on one Sky box both boxes will change at the same time.

Infrared Handset Remote

The Scion infrared hand set has been designed to work with all the Scion product range. Enabling you to select any TV channel available from the range of transmitter chasis. The handset can also be programmed to control the volume up and down and standby mode of the TV set being used to view the channel
