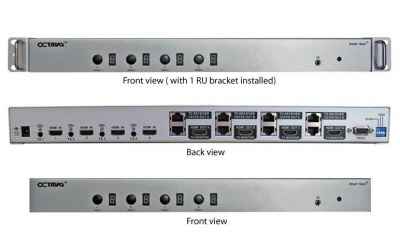

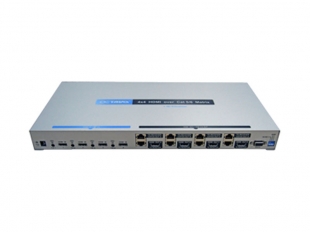

Octava HDMX44CAT-UK 4x4 HDMI CAT6 Matrix Switch + 4 x CAT5 Receivers

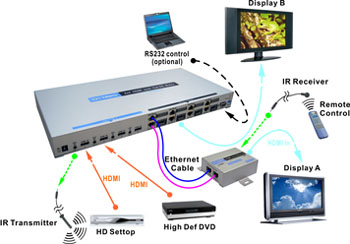

The Octava 4x4 HDMI - Ethernet CAT 5/6 Matrix Router allows you to route 4 HD sources to any 4 HD displays over HDMI or CAT 5/6 Ethernet cables! The 4x4 HDMI matrix allows 256 viewing combination of 4 HD sources on 4 HDTV's. In addition, Infrared Extension allows I.R. signals to be sent from viewing area to the equipment room over CAT-5/6 Cables.

The Octava 4x4 HDMI Ethernet Matrix Router has user configurable outputs. Each of the outputs can be configured for either 1) HDMI cable connection OR 2) CAT 5/ 6 Cable Connection. The Ethernet CAT 5/6 Matrix Switch is a complete HD routing solution for whole home HDTV systems. Ethernet cables and connectors are easily field terminated thus allowing installers to easily install the proper length cable needed for ultimate flexibility and eliminates logistics problems of having custom length HDMI cables.

The Octava 4x4 HDMI Matrix is Full 1080P, V1.3 compatible and is 1 RU Rack mountable for professional installations

Specification

  • Watch ANY 4 HD programs simultaneously on 4 Displays!
  • HDMI version 1.3, 1080p
  • 4 HDMI inputs
  • 4 HDMI , OR 4 CAT 5/6 Ethernet Outputs ( user configurable)
  • Matrix allows 256 viewing combinations
  • IR Passthru over CAT 5/6 cables
  • 1 RU mountable
  • Integrated Ethernet CAT 5/6 Transmitter for compact installation
  • RS-232 control
  • Works with HDMI or DVI-D, HDCP-enabled HDTV
  • Supports high resolution video 480p, 720i/p, 1080i/p
  • Clear EYETM design optimizes HDMI signal transmission
  • Easy to switch 4 HDMI or DVI-D sources to 4 displays.
  • Smart SCAN TM algorithm intelligently selects the correct input. Approved by Wives and Kids!
  • Remote Control (IR) included. Discrete Code allows direct channel control.
  • External IR Jack for extension
  • Model: HDMX44CAT-UK
  • 4 Ethernet to HDMI Receiver (includes 4 IR Receiver and Transmitter Cable)

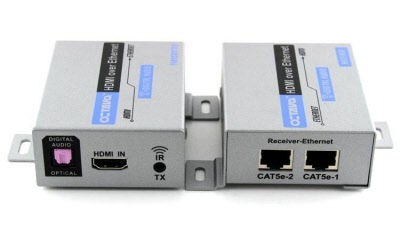

Octava HDOCAT-UK HDMI + Optical CAT5 extender with IR Passthru

Description:

HDMI over CAT5e/6 Transceiver allows transmission of HDMI, I.R. and Toslink Optical Audio over standard CAT-5 / 6 Ethernet cables. The HDMI Transceiver consists of a HDMI Transmitter and a HDMI Receiver and allows transmission of 1080P HD upto 50 metres over Ethernet cables (CAT-6 recommended). Infrared Extension allows I.R. signals to be sent from viewing area to the equipment room. Optical Audio Toslink In/ Out port is provided to extend Optical Toslink Audio signal from Source to the Surround Sound Receiver.

CAT 6 cable is recommended for 1080P and best performance

Larger picture

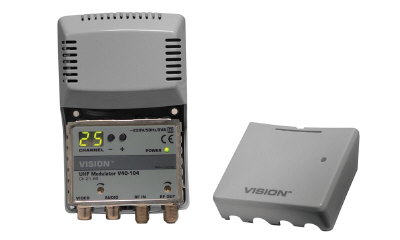

UHF Pro Modulator

Double-Sideband Mono Modulator Mains Powered

  • Double Sideband Modulator For MATV Systems.
  • Simple channel setup with digital channel display.
  • Micri-processor controlled.
  • Multi-standard Pal I,G,H,K,M,N
  • Loop-thru' RF connection to combine with other channels.
  • Test patten generator built-in
  • Fully-screened with "F"-connectors

Spectfication.

Video Input Frequency                               20Hz to 6 MHz

Video Input Level / Inpedance                    1V peak to peak+-1dB 75 ohm

Audio Input Frequency                               20Hz to 15kHz

Audio Input Level Adjustment                      +1 to -14dB

Audio Level / Impedance / Deviation **        775mv RMS / 10K ohm / 50Hz

Audio Freq Response Pre-Correction             50us

RF Output Level                                           85dBuV into 75 ohm (70-85dBuV)

RF Adjustment                                             0 to -15dB

RF Output Channels **                                 21 to 69 G,H,I,K   14-78 M,N   (470 to 862 MHz)

Carrier Accuracy                                          +- 50kHz

Sound Sub-Carrier Ferq                                 4.5MHz, 5.5MHz, 6.0MHz, 6.5MHz

Fine tunning / Channel Offset Range **           +-2.25MHz max In 0.25MHz steps

Freq Range of RF Loop Through                       47 to 862MHz

Video Freq Response                                       +-1dB

A/V Ratio**                                                    12 +-3dB or 16 +-3dB

Mains Voltage                                                  230v +-10% AC 50Hz 3VA UK Mains Plug Fitted 3A Fuse

Operating Temp Range                                     -10 C to +50 C

Dimensions / Packed Weight                             78 x 118 x 47       0.37kg

** Microprocessor Controlled / Programmable         The Product is RoHS compliant.
