Network Equip.

 The SOHI Mini 10inch cabinets are a perfect alternative to a standard 19inch cabinet when space is tight.

!
Larger picture

8U Mini Soho Wall Cabinets

This wall mounting cabinet is designed to house 235mm wide panels. The acrylic door to the front uses a simple magnetic closure. Paint in Off White/Cream

There are removable panels on each side (100mm x 300mm) for easy access to the equipment during installation.

Dimensions: 8U W 300mm x D 300mm x H 380mm

Cage Nuts & Bolts (black)

Cage Nuts and Bolts in black (Pk 50)
6207561

12 port Cat5e patch panel for Soho Cabinet, black

10" 12 port Cat 5e patch panel for Soho Cabinet, black Designed to fit the Quantum Soho cabinet

SOHO Mini 12 Way Patch Panel
12 RJ45 Cat5e ports
1u 110/Krone punch down

Larger picture

24 port Patch Panel 2U

Category 5e Patch Panels are available in 12 port 1u and 24 port 2u versions each with an easy to use screen printed labelling system. Each panel is supplied with a cage nut and cable ties.
planel

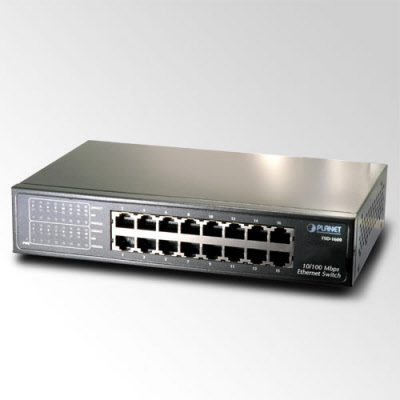

Soho 16-Port 10/100Base-TX Ethernet Switch

Overview
FSD series products provide an easy and cost effective way to boost Your network performance while preserving your network infrastructure, including installed cabling and desktop software and hardware. This unit comes with ears for 10" rack mounting.

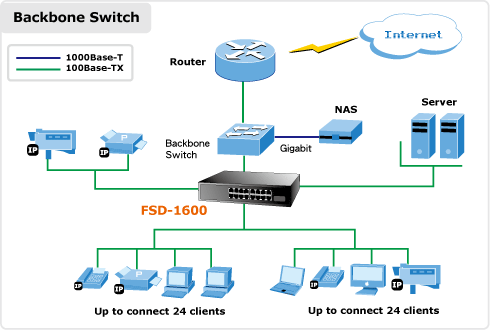

Application

FSD-1600
Key Features
• Comply with IEEE 802.3 10Base-T standards, IEEE 802.3u 100Base-TX
• 16-port 100Base-TX Fast Ethernet Switch
• High performance, non-blocking store-and-forward switching technology
• Automatic speed and duplex mode sensing
• Runt & CRC filtering eliminates erroneous packets to optimize the network
　bandwidth
• Filtering / Forwarding rate: 148800pps for 100Mbps, 14880pps for 10Mbps
• IEEE 802.3x full-duplex flow control, half-duplex back-pressure
• 8192 MAC address table
• MDI / MDI-X auto-detection for easily switch / hub cascading
• Internal power supply
Specification
Model FSD-1600
Standard IEEE 802.3, 10Base-T, IEEE802.3u, 100Base-TX
Ports 16 RJ-45
Cabling 10Base-T: 2-pair UTP Cat 3,4,5 (maximum 100m)
100Base-TX: 2-pair UTP Cat.5 (maximum 100m)
LED Display Power
10/100M and 100FX port: 2 (100, Link/Active)
Dimensions (W x D x H) 217 x 135 x 43.5 mm
1 U height, 10-inch / 19-inch rack mountable
Power Requirement 100~240V AC, 50~60Hz
Temperature 0~50 Degree C (operating)
Humidity 0~90% non-condensing
Emission FCC, CE Class A
6207563

10" Cantilever shelf, front fixing, black. For Soho Cabinet

10" centre weight shelf, front fixing, black. Designed to fit the Soho cabinet

SOHO Mini 10 inch Shelf
For use only with SOHO Cabinets
1u x 150mm
Not for use in standard 19 inch Cabinets

Larger picture

Soho Voice and Data Mini 10in Panel

SOHO Voice and Data Mini 10 inch Panel combines 4 x BT 6 wire secondary sockets and 4 x Cat5e UTP RJ45 sockets. Dual termination 110/Krone compatible. Panel has been designed with a rear lid to protect terminated cables. Suitable tools CT28 or CT36.

1U 10" Blanking Plate

HN-8X-MVP

Telephone Distribution Panel 2 x 4 Way Mastered

These panels allow 2 telephone lines to be terminated, each with four extensions. The fully mastered version allows for direct connection to incoming lines.
HN-8X-MVP

Telephone Distribution Panel 2 x 4 Way Secondary

These panels allow 2 telephone lines to be terminated, each with four extensions. The fully mastered version allows for direct connection to incoming lines.
