TMM Cascade Multiswitch Brochure

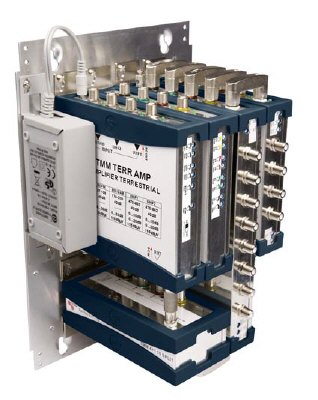

TMM Cascade Multiswitches

  • Modular range provides a compact, simple, flexible and cost effective solution for your IRS system
  • 5 input cacadable multiswitches
  • Includes multiswitches, amplifiers, splitters and power inserter
  • Multiswitches with 4, 8, 12 and 16 outputs
  • Level control on each multiswitch input
  • Satellite and terrestrial launch and distribution amplifiers
  • Gain and slope control on amplifiers
  • Power inserter allows powering from anywhere on the system

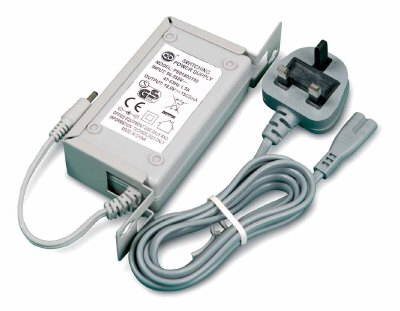

  • Switch mode power supply for efficient operation
  • Colour coded connectors
  • Rack or surface mounted

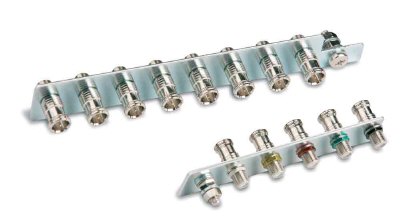

  • Push-on earth bars available
!
Larger picture

Product 137

Larger picture

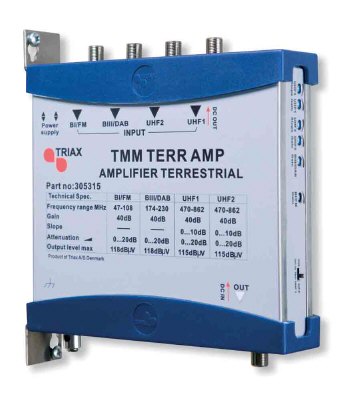

TMM TLA Launch Amp (305315)

4 in, 1 Out VHF/FM/2 x UHF
Larger picture

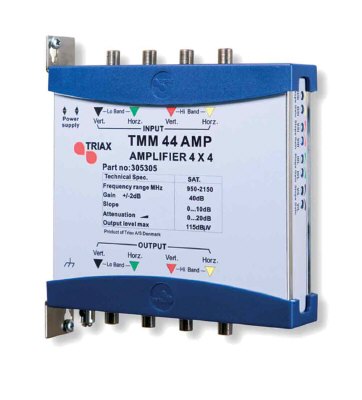

TMM 44 Launch AMP (305305)

4 x 4 40dB IF
Larger picture

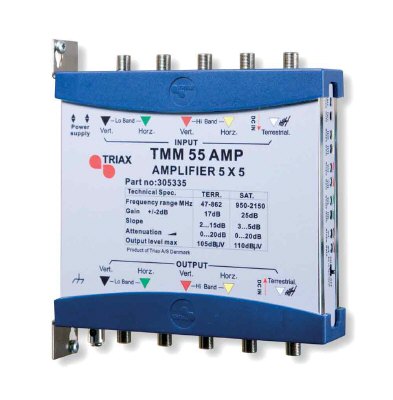

TMM 55 AMP (305335)

  • 4 x Satellite Amplifiers plus 1 x Terrestrial Amplifier
  • Gain and Slope control on all inputs
  • Line powered or prowered from external power supply
  • Power on LED
  • Colour coded inputs and outputs.
Larger picture

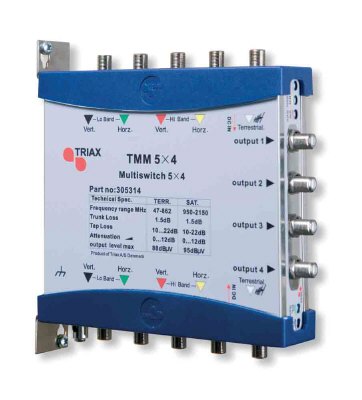

TMM 5x4 (305314)

The Triax TMM 5x Multi Switch Series is a fully modular and cascadable system suitable for single- as well as multi-satellite configurations (up to 4 satellite positions: 4, 8, 12 and 16 polarities + terrestrial). An individual 0 - 12 dB level attenuation on every polarity assures a uniform subscriber signal level independent upon floor and eliminates the need for many different types. Suitable for installation on a mounting plate as well as wall-mounting.

Passive cascadable distribution trunk lines: 4 x satellite polarities + 1 x Terrestrial.
Available in versions with 4, 8, 12 and 16 Subscriber outputs.
Subscriber outputs are active to compensate for insertion-loss.

Versions with 4 and 8 subscriber outputs are suitable to build multi-position systems using TMM 2/3/4B Bridger units.

TMM 5x12- and 16-Subcriber versions have parallel outputs to minimize installation space.

In a multi satellite configuration the TMM 5x module can be placed as any position on the mounting plate. This generates a permanent terrestrial distribution to all outputs via the TMM 2/3/4B DiSEqC Bridger units.



Technical specifications
EAN-number  5702663053144
Number of inputs  4 SAT, 1 TER
Number of outputs  4
Frequency range SAT  950 - 2150 MHz
Frequency range TER  47 - 862 MHz
Through loss SAT  1.5 dB
Through loss  1.5 dB
Level adjust range  0 - 12 dB
Subscriber insertion loss  10 - 20 dB
Isolation TER-SAT  35 dB
Isolation SAT-TER  35 dB
Isolation cross polarisation H/V  30
Isolation out-out SAT  30
Isolation out-out TER  30
Return loss SAT inputs  12
Return loss SAT outputs  12
Return loss sub out SAT  10
Return loss TER inputs  12
Return loss TER outputs  12
Impedance input/output  75 Ohm
Switching voltage  15 ±1
Control signals from STB - Polarity V  13 V
Control signals from STB - Polarity H  18 V
Control signals from STB - High band  0,6 ±0,2 (22 kHz) V
Isolation V/H  30 dB
Power consumption from receiver  <200 mA
Max. current pass per F-connector  500 mA
Input level SAT (IMA -35 dB)  117
Output level SAT (IMA -35 dB)  95
Input level TER (IMA -60 dB)  110
Output level TER (IMA -60 dB)  88
Operating temperature range  0 - 50 oC
Dimensions product lxwxh  181 x 35.4 x 170 mm
Dimensions (H x D x W)  160 x 35 x 180
Control LEDs  5 x green
Remarks  Earthing via M4 screw

Larger picture

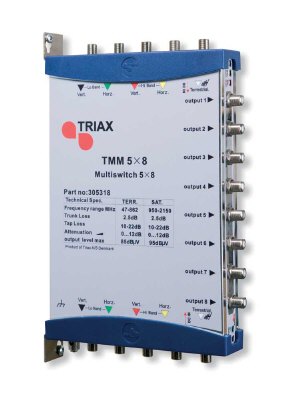

TMM 5x8 (305318)

The Triax TMM 5x Multi Switch Series is a fully modular and cascadable system suitable for single- as well as multi-satellite configurations (up to 4 satellite positions: 4, 8, 12 and 16 polarities + terrestrial). An individual 0 - 12 dB level attenuation on every polarity assures a uniform subscriber signal level independent upon floor and eliminates the need for many different types. Suitable for installation on a mounting plate as well as wall-mounting.

Passive cascadable distribution trunk lines: 4 x satellite polarities + 1 x Terrestrial.
Available in versions with 4, 8, 12 and 16 Subscriber outputs.
Subscriber outputs are active to compensate for insertion-loss.

Versions with 4 and 8 subscriber outputs are suitable to build multi-position systems using TMM 2/3/4B Bridger units.

TMM 5x12- and 16-Subcriber versions have parallel outputs to minimize installation space.

In a multi satellite configuration the TMM 5x module can be placed as any position on the mounting plate. This generates a permanent terrestrial distribution to all outputs via the TMM 2/3/4B DiSEqC Bridger units.



Technical specifications
EAN-number  5702663053182
Number of inputs  4 SAT, 1 TER
Number of outputs  8
Frequency range SAT  950 - 2150 MHz
Frequency range TER  47 - 862 MHz
Through loss SAT  2.5 dB
Through loss  2.5 dB
Level adjust range  0 - 12 dB
Subscriber insertion loss  10 - 20 dB
Isolation TER-SAT  35 dB
Isolation SAT-TER  35 dB
Isolation cross polarisation H/V  30
Isolation out-out SAT  30
Isolation out-out TER  30
Return loss SAT inputs  12
Return loss SAT outputs  12
Return loss sub out SAT  10
Return loss TER inputs  12
Return loss TER outputs  12
Impedance input/output  75 Ohm
Switching voltage  15 ±1
Control signals from STB - Polarity V  13 V
Control signals from STB - Polarity H  18 V
Control signals from STB - High band  0,6 ±0,2 (22 kHz) V
Isolation V/H  30 dB
Power consumption from receiver  <250 mA
Max. current pass per F-connector  500 mA
Input level SAT (IMA -35 dB)  117
Output level SAT (IMA -35 dB)  95
Input level TER (IMA -60 dB)  107
Output level TER (IMA -60 dB)  85
Operating temperature range  0 - 50 oC
Dimensions product lxwxh  181 x 35.4 x 170 mm
Dimensions (H x D x W)  160 x 35 x 270
Remarks  Earthing via M4 screw

Larger picture

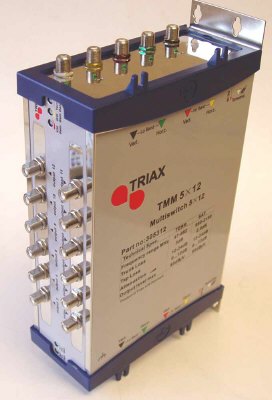

TMM 5x12 (305312)

The Triax TMM 5x Multi Switch Series is a fully modular and cascadable system suitable for single- as well as multi-satellite configurations (up to 4 satellite positions: 4, 8, 12 and 16 polarities + terrestrial). An individual 0 - 12 dB level attenuation on every polarity assures a uniform subscriber signal level independent upon floor and eliminates the need for many different types. Suitable for installation on a mounting plate as well as wall-mounting.

Passive cascadable distribution trunk lines: 4 x satellite polarities + 1 x Terrestrial.
Available in versions with 4, 8, 12 and 16 Subscriber outputs.
Subscriber outputs are active to compensate for insertion-loss.

Versions with 4 and 8 subscriber outputs are suitable to build multi-position systems using TMM 2/3/4B Bridger units.

TMM 5x12- and 16-Subcriber versions have parallel outputs to minimize installation space.

In a multi satellite configuration the TMM 5x module can be placed as any position on the mounting plate. This generates a permanent terrestrial distribution to all outputs via the TMM 2/3/4B DiSEqC Bridger units.



Technical specifications
EAN-number  5702663053120
Number of inputs  4 SAT, 1 TER
Number of outputs  12
Frequency range SAT  950 - 2150 MHz
Frequency range TER  47 - 862 MHz
Through loss SAT  3 dB
Through loss  2.5 dB
Level adjust range  0 - 12 dB
Subscriber insertion loss  10 - 22 dB
Isolation TER-SAT  30 dB
Isolation SAT-TER  30 dB
Isolation cross polarisation H/V  30
Isolation out-out SAT  30
Isolation out-out TER  30
Return loss SAT inputs  12
Return loss SAT outputs  12
Return loss sub out SAT  10
Return loss TER inputs  12
Return loss TER outputs  12
Impedance input/output  75 Ohm
Switching voltage  15 ±1
Control signals from STB - Polarity V  13 V
Control signals from STB - Polarity H  18 V
Control signals from STB - High band  0,6 ±0,2 (22 kHz) V
Isolation V/H  30 dB
Power consumption from receiver  <250 mA
Max. current pass per F-connector  500 mA
Input level SAT (IMA -35 dB)  119
Output level SAT (IMA -35 dB)  95
Input level TER (IMA -60 dB)  109
Output level TER (IMA -60 dB)  85
Operating temperature range  0 - 50 oC
Dimensions product lxwxh  181 x 35.4 x 170 mm
Dimensions (H x D x W)  160 x 70 x 270
Remarks  Earthing via M4 screw
Larger picture

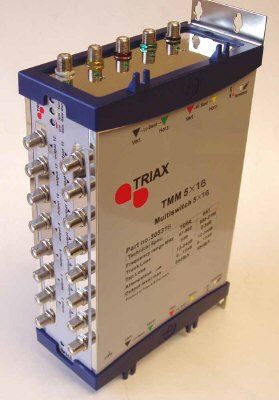

TMM 5x16 (305316)

The Triax TMM 5x Multi Switch Series is a fully modular and cascadable system suitable for single- as well as multi-satellite configurations (up to 4 satellite positions: 4, 8, 12 and 16 polarities + terrestrial). An individual 0 - 12 dB level attenuation on every polarity assures a uniform subscriber signal level independent upon floor and eliminates the need for many different types. Suitable for installation on a mounting plate as well as wall-mounting.

Passive cascadable distribution trunk lines: 4 x satellite polarities + 1 x Terrestrial.
Available in versions with 4, 8, 12 and 16 Subscriber outputs.
Subscriber outputs are active to compensate for insertion-loss.

Versions with 4 and 8 subscriber outputs are suitable to build multi-position systems using TMM 2/3/4B Bridger units.

TMM 5x12- and 16-Subcriber versions have parallel outputs to minimize installation space.

In a multi satellite configuration the TMM 5x module can be placed as any position on the mounting plate. This generates a permanent terrestrial distribution to all outputs via the TMM 2/3/4B DiSEqC Bridger units.



Technical specifications
EAN-number  5702663053168
Number of inputs  4 SAT, 1 TER
Number of outputs  16
Frequency range SAT  950 - 2150 MHz
Frequency range TER  47 - 862 MHz
Through loss SAT  3 dB
Through loss  2.5 dB
Level adjust range  0 - 12 dB
Subscriber insertion loss  10 - 22 dB
Isolation TER-SAT  30 dB
Isolation SAT-TER  30 dB
Isolation cross polarisation H/V  30
Isolation out-out SAT  30
Isolation out-out TER  30
Return loss SAT inputs  12
Return loss SAT outputs  12
Return loss sub out SAT  10
Return loss TER inputs  12
Return loss TER outputs  12
Impedance input/output  75 Ohm
Switching voltage  15 ±1
Control signals from STB - Polarity V  13 V
Control signals from STB - Polarity H  18 V
Control signals from STB - High band  0,6 ±0,2 (22 kHz) V
Isolation V/H  30 dB
Power consumption from receiver  <250 mA
Max. current pass per F-connector  500 mA
Input level SAT (IMA -35 dB)  119
Output level SAT (IMA -35 dB)  95
Input level TER (IMA -60 dB)  109
Output level TER (IMA -60 dB)  85
Operating temperature range  0 - 50 oC
Dimensions product lxwxh  181 x 35.4 x 170 mm
Dimensions (H x D x W)  160 x 70 x 270
Remarks  Earthing via M4 screw
Larger picture

Product 145

Supplied with Switch F.O.C
Larger picture

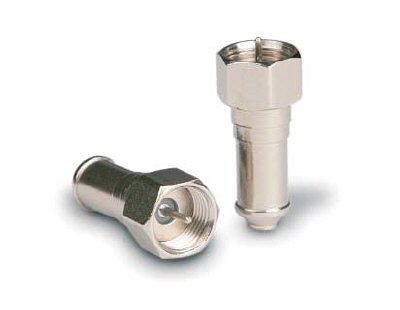

TMM DC Blockers/Terminator (305349)
