This design provides 8 x Telephone/Computer outlets, 8 x TV outlets and 4 rooms of Music. The system will distribute one telephone line and an internet broadband connection, Sky or Sky+, Terrestrial TV, FM and DAB and Music from a single source.

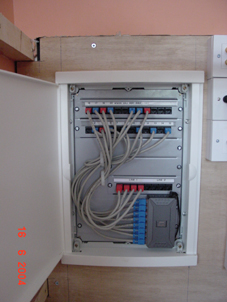

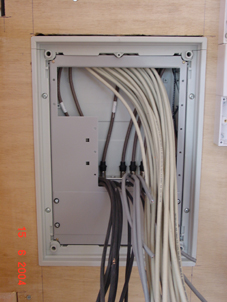

This system uses the CRIS Midi Enclosure with a high density mounting plate. It is populated with 2 x 12 Way RJ45 patch panels, a 6 Way Audio panel and a 10 Way Krone Panel. It has an 8 port Ethernet Switch and is ready for a Broadband Modem/Router to be connected.
The Music Distribution has the music imput and control outlets located adjactent to the Hi Fi system. There are 4 Volume Controls with built in Infra Red Receivers. The volume controls are attached to ceiling mounted speakers.

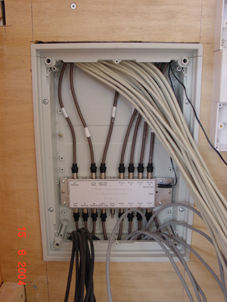

The 8 Way TV amplifier can drive 8 TVs around the house. It uses the special lounge wall plate that is co-located with the Set Top Box. Each TV will receive the terrestrial TV channels and Sky. FM and DAB is also passed to each TV point.

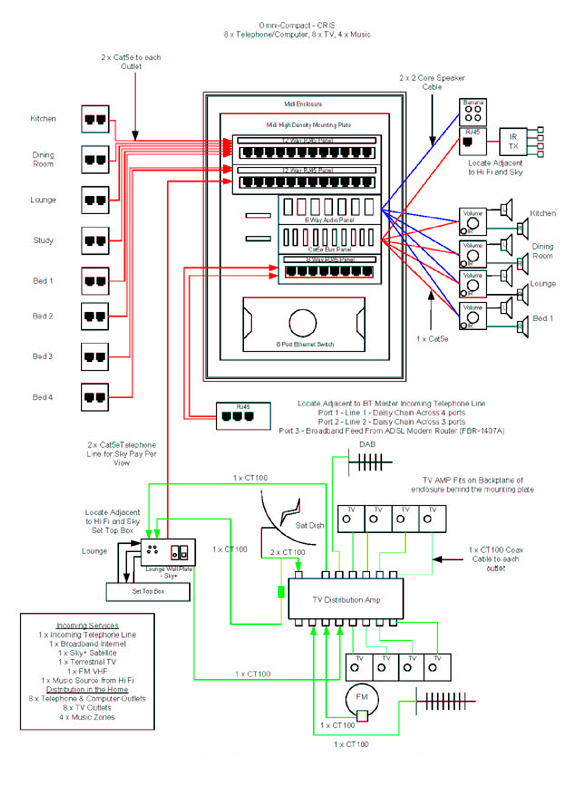

Please click on the link below to view a wiring diagram for this system. Please be patient as this may take a couple of seconds to open up if you are on a slow internet link. You can also view the parts list required for this system. All these parts can be ordered on this website.
